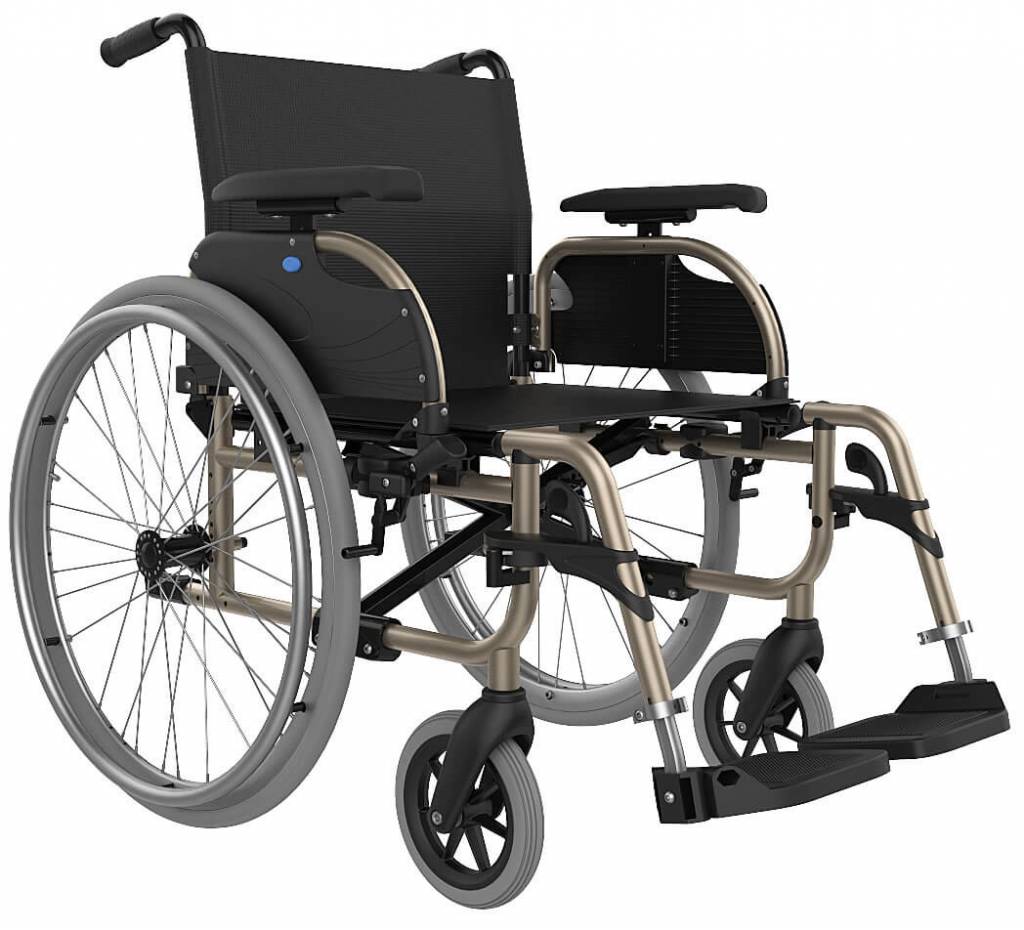

Aluminium-Rollstuhl extra leicht ICON 20

A new family of wheelchairs and accessories based on modular design and features.

ICON Aluminum Wheelchair

• Aluminum wheelchair
• Standard lightweight, aluminum folding wheelchair. Set up for self-service (user)
• Lighter folding wheelchairs with basic function
• Can be set up for active users who mainly control themselves or for people who have pushers"
• 12 rear axle positions.
• Vertical fork adjustment
• Aluminum
• 3 options for armrests
• 2 leg rest options
• Armrest styles and adjustments for perfect body fit and function
• Leg rest styles for best support of the lower limbs
• Backrest and seat options for best comfort and fit
• Many frame sizes for the best position and riding experience: 25, 30, 35, 37.5, 40, 42.5, 45, 47.5, 50, 53 & 57 cm

Lots of accessories

• Fully adjustable amputee leg support
• Soft and comfortable PU pad
• Raised leg rest, both light and elegant design. The construction is very rigid and offers excellent support
• Drum brake wheel, available in 20", 22", 24" and 26". Supplied with quick release axles

Recommended for people weighing up to 140 kg up to 180 kg for HD version

The main differences between the Icon 20 and Icon 40:

• The Icon 40 has many adjustment/setting options such as seat depth adjustment from 40-50 cm and multiple settings for placement of the rear wheel both in height and depth. The Icon 20 has no seat depth adjustment (standard is 45 cm) and only two depth settings for the rear wheel.
• The Icon 40 has the possibility to adjust the angle of the front wheel axle at the front wheels. The Icon 20 has a fixed front wheel axle.
• The Icon 40 has a Velcro tensionable backrest for comfort adjustment. The Icon 20 has a fixed backrest.
• The Icon 40 has leg rests that are adjustable in height with a clip - and the foot plate is adjustable in angle. The Icon 20 has leg rests that are adjustable in height with a bolt (not adjustable) - and a fixed foot plate.
• The Icon 40 has anti-tip wheels – the Icon 20 does not (but they are available as an accessory).
• The Icon 40 weighs about 2.5 kg more than the 20

Both wheelchairs have:

• Height-adjustable, foldable and removable armrests
• Height adjustable push handles
• A user weight of 140 kg
• Quick release rear wheels
• Black solid core rear wheels and soft front wheels
• The same accessories: such as Comfort leg supports, amputee support, etc.

Furthermore:

• The Icon 40 is available from stock in 45 cm width and 50 cm width (other special sizes available to order).
• The Icon 20 is available from stock in 45 cm and 50 cm widths.
