A new range of wheelchairs and accessories. Modular construction.

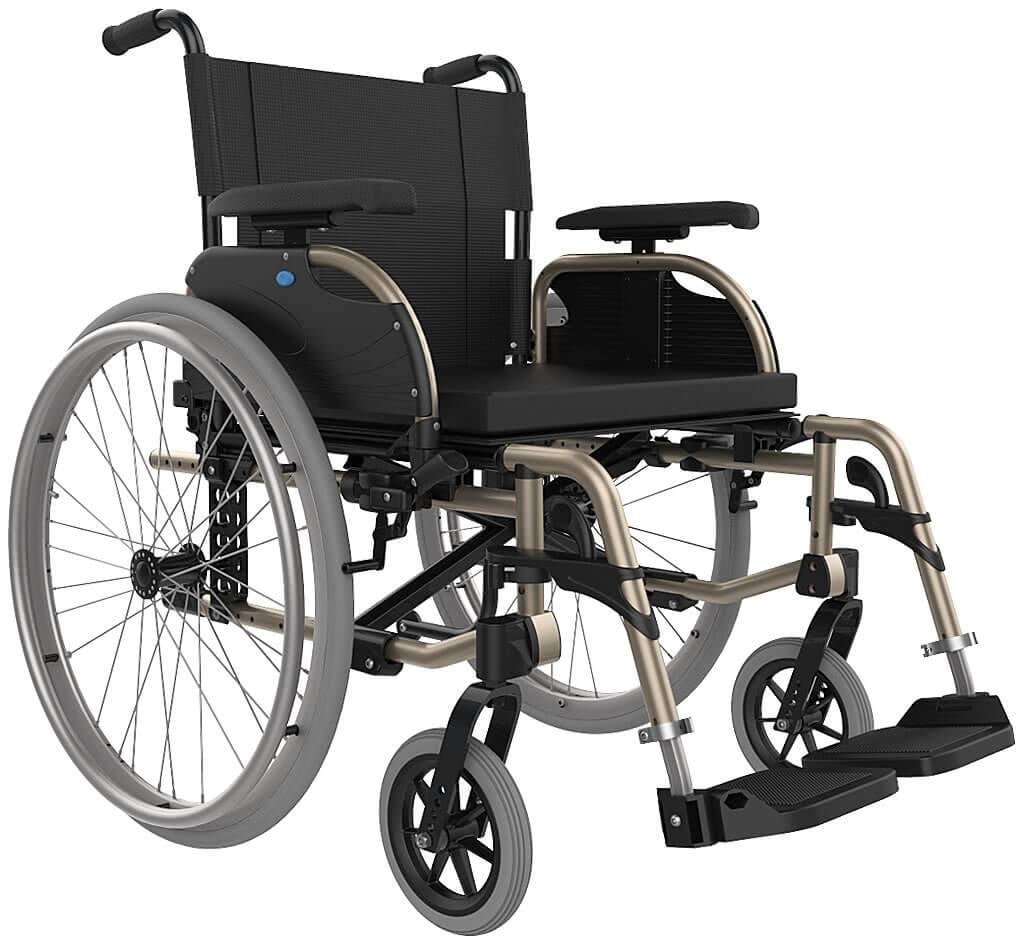

ICON wheelchair

The Icon 40 is a high performance, lightweight aluminium folding wheelchair. With a comprehensive range of options to meet the needs of the active user.

• Suitable for a wide range of user types and can be fitted with an adjustable back for greater everyday comfort.
• With 24 rear axle adjustment options for the most suitable rear wheel position.
• The front fork with the front wheel is adjustable in height and angle.
• Front wheels in different sizes.
• Various types of armrests, foldable for transfer in and out of the chair and also removable for transport.
• Leg rests adjustable in length and with angle-adjustable foot plate for optimal support of the lower leg.
• Different armrests can be adjusted to the user and user function.
• Adjustable back and seat depth for the best fit and optimum comfort
• Extensive range of seat widths for the best fit: 37.5, 40, 42.5, 45, 47.5, 50, 53 & 57 cm

Many accessories

• Angle and height adjustable leg rests both light and elegant in design. The construction is particularly sturdy and offers excellent support.
• Amputee support
• Drum brakes
• 20”, 22” and 24” rear wheels, supplied with quick release axles also for use in combination with drum brakes
• Anti-tip wheels with 'step assist'
• Height adjustable push handles
• Angle adjustable backrests
• Height adjustable armrests
• Extended brake levers, foldable
• Headrest
• Side supports
• Stabilizer bar

Recommended for users weighing up to 180 kg.

3 Models:

- 53 x 40-50, front wheel 7“

- 57 x 40-50, front wheel 7“

- 61 x 40-50, front wheel 7“

The main differences between the Icon 20 and Icon 40:

• The Icon 40 has many adjustment/setting options such as seat depth adjustment from 40-50 cm and multiple settings for placement of the rear wheel both in height and depth. The Icon 20 has no seat depth adjustment (standard is 45 cm) and only two depth settings for the rear wheel.
• The Icon 40 has the possibility to adjust the angle of the front wheel axle at the front wheels. The Icon 20 has a fixed front wheel axle.
• The Icon 40 has a Velcro tensionable backrest for comfort adjustment. The Icon 20 has a fixed backrest.
• The Icon 40 has leg rests that are adjustable in height with a clip - and the foot plate is adjustable in angle. The Icon 20 has leg rests that are adjustable in height with a bolt (not adjustable) - and a fixed foot plate.
• The Icon 40 has anti-tip wheels – the Icon 20 does not (but they are available as an accessory).
• The Icon 40 weighs about 2.5 kg more than the 20

Both wheelchairs have:

• Height-adjustable, foldable and removable armrests
• Height adjustable push handles
• A user weight of 140 kg
• Quick release rear wheels
• Black solid core rear wheels and soft front wheels
• The same accessories: such as Comfort leg supports, amputee support, etc.

Furthermore:

• The Icon 40 is available from stock in 45 cm width and 50 cm width (other special sizes available to order).
• The Icon 20 is available from stock in 45 cm and 50 cm widths.
