Air2Care 8 is the updated version of ESRI 1000

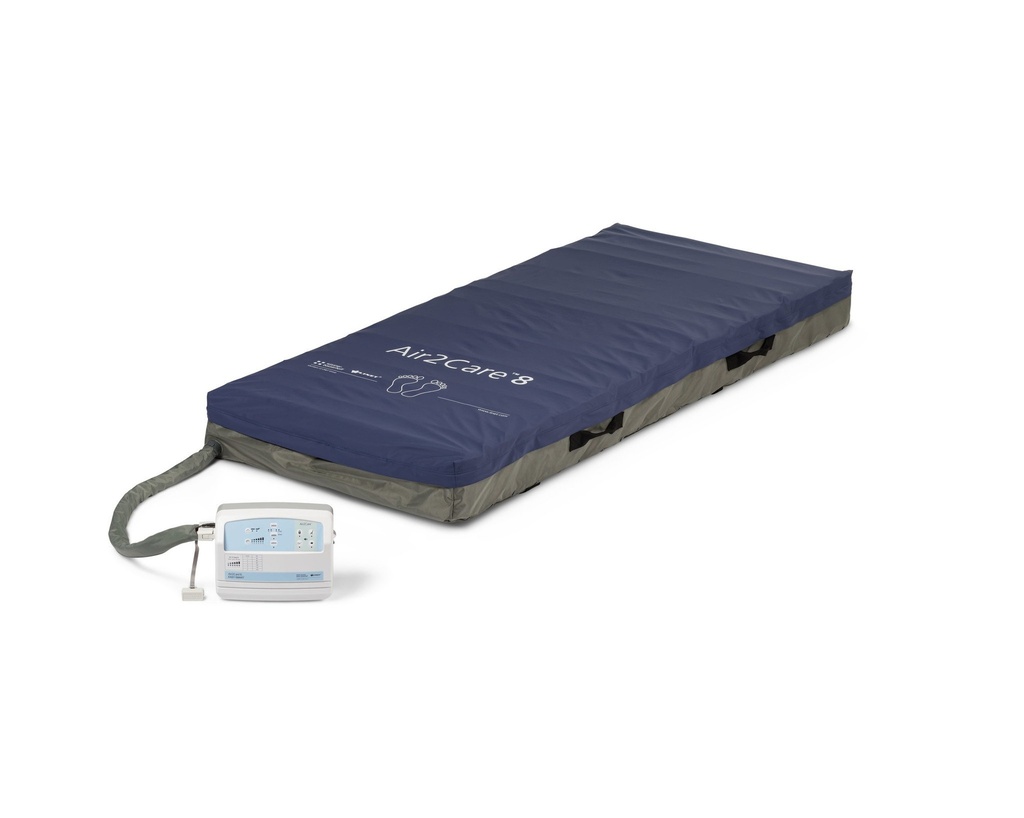

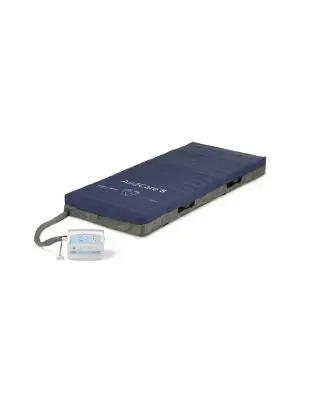

The Air2Care 8 mattress replacement anti-decubitus system consists of the Air2Care 8 mattress and the Air2Care 8 pump. These are also available separately.
Air2Care 5, 6 and 8
The Air2Care active alternating pressure mattress system with 1 to 2 cell cycle contributes to decubitus prevention in hospitals, long-term and home care. Thanks to the Easy Smart function, the pressure setting for different care recipients is set fully automatically. The advantage is that 4 different alternating cycles can be selected for the individual needs and preferences of each patient.
Your benefits at a glance (some features are optional)
Periodic pressure relief
Thanks to the alternating pressure system with 1 in 2 cell cycle, the Air2Care reduces pressure and helps the mattress to minimize long-term pressure peaks on the body.
Local pressure relief
The mattress is constructed from alternating individual lockable and interchangeable cells. This allows pressure to be relieved from specific parts of the body.
Minimal risk of bottoming out while sitting
The Single Fowler boost function automatically detects increased back support.
The wide choice of cycle times allows caregivers to find the right balance between periodic pressure relief and comfort for the care recipient.
Cycle time options: 10, 15, 20, 25 minutes
Choose the right cycle length based on the condition of the care recipient and his/her personal preference
Effective technology does not have to require complicated installation and operation. The Air2Care 5, 6 and 8 mattresses are easy to operate and feature the Easy Smart automatic pressure adjustment.
Automatic pressure adjustment with the Easy Smart System
The mattress automatically and continuously adjusts to the length, weight and position of the care recipient
Self-closing valves help maintain pressure so the mattress stays inflated even when a cell is removed for cleaning or repair.
Air2Care 5
Top mattress 12.5 cm with 1 to 2 cell cycle
| Safe working load | 140 kg |
| Dimensions | 86 × 200 cm |
| Modes | Alternating, Max, Constant low pressure |
| Cycle time | 10, 15, 20, 25 min |
| Cells | self-closing valves |
| Top cover | With PU coating, breathable, bi-elastic |
| Undercover | Nylon from PVC |
Air2Care 6
14 cm mattress replacement system with 1 in 2 cell cycle
| Safe working load | 160 kg |
| Dimensions | 86cm × 200cm, 90cm × 200cm, 86cm × 210cm, 90cm × 210cm |
| Modes | Alternating, Max, Constant low pressure |
| Cycle time | 10, 15, 20, 25 min |
| Cells | self-closing valves |
| Top cover | With PU coating, breathable, bi-elastic |
| Undercover | Nylon from PVC |
Air2Care 8
20cm mattress replacement system with 1 in 2 cell cycle
| Safe working load | 180 kg / 250 kg |
| Available sizes | 86cm×200cm, 100×200cm |
| Modes | Alternating, Max, Constant low pressure |
| Cycle time | 10, 15, 20, 25 min |
| Cells | self-closing valves |
| Top cover | With PU coating, breathable, bi-elastic |
| Undercover | Nylon from PVC |
Technical details:
Mattress
- Made of polyurethane material, constructed from alternating, individually lockable ("floating heels") and interchangeable cells
- 20 cells with Cell on cell structure, thickness 22cm Quick release for selective closing or replacing air ducts
- Version 1: Dimensions: 200 X 83 x 22 cm thickness
- Version 2: Dimensions: 200 X 120 x 22 cm thickness
- Fireproof, bi-elastic PU cover, waterproof, anti-bacterial and air permeable, zips all the way around the mattress
- Washable up to 90°C
- CPR valve (resuscitation and complete emptying of air zones)
- Up to 280kg body weight
- Transport valve
Pump
- Digital alternating pump >20 l/min with pressure control, dynamic and autofirm function
- At low pressure, visual and audible alarm
- Cycle time 10, 15, 20 min. adjustable
- Semi-autonomous pressure adjustment
- Nursing mode quick select switch
- Cycle time quick select switch
- Alarm reset and auto inflation
- Lock function
- Seat function
- Warranty after purchase: 2 years
2_IFU_-_A2C_Air_Mattress_System_E01-ver4_ENG_20240717_NLpdf (2) (1).pdf
Synonyms: Air2Care 8, mattress topper, anti-decubitus mattress, alternating mattress, pressure-reducing system
